Large format keyboard laser marking machine
Basic information
商品名稱： 大幅面鍵盤專用激光打標機
商品編號： 大幅面鍵盤專用激光打標機
上架時間： 2015-05-21
適用材料： 任何金屬(含稀有金屬)、不銹鋼、氧化鋁材質、工程塑料、電鍍材料、鍍膜材料、噴涂材料、塑料橡膠、環(huán)氧樹脂等材料。
適用行業(yè)： 鍵盤、氧化鋁、鋁合金、手機不銹鋼飾片、電子元器件、集成電路（IC）、電工電器、通訊產品、衛(wèi)浴潔具、工具配件、刀具、眼鏡鐘表、珠寶首飾、汽車配件、箱包飾扣、炊具、不銹鋼制品等行業(yè)。
Product details

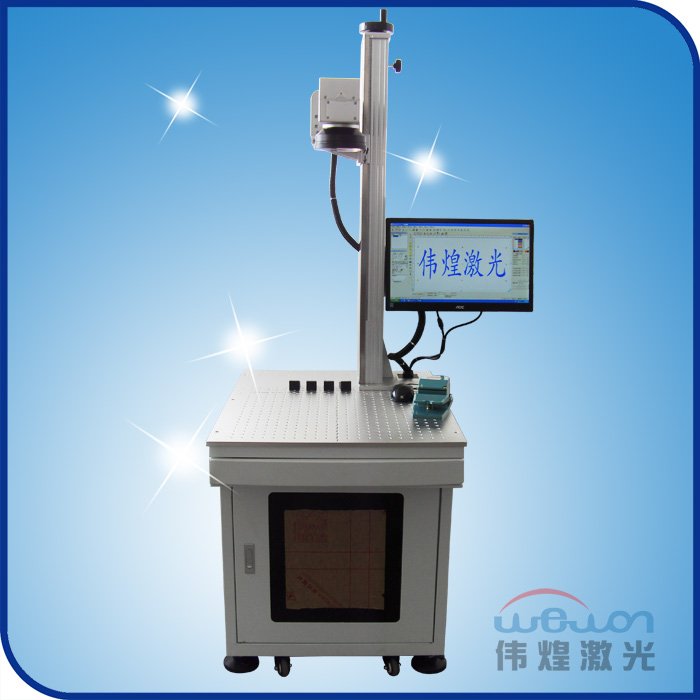

Trade name: Large format keyboard laser marking machine
Product No.: Large format keyboard laser marking machine
On sale time: 2015-05-21
Applicable materials: Any metal (including rare metals), stainless steel, aluminium oxide material, engineering material, electroplating material, spraying material, plastic, rubber, and other materials.
Application: Keyboard, alumina, aluminum alloy, electronic components, integrated circuit (IC), electrical engineering and electric apparatus, sanitary, tools, auto parts, stainless steel products, and other industries.
Weihuang Laser new-generation energy-saving high-speed marking machine for keyboard is manufactured with German IPG fiber laser, German SCANLAB scanning galvanometer and advanced technologies of Weihuang.
Features:
1. The product is all-in-one machine with small floor area. Advanced laser generator, special light path control, high electro-optical conversion efficiency, low energy consumption, maintenance-free.
2. The product has stable beam quality and fine light spot and it can increase definition of the product.
3. Germany SCANLAB scanning galvanometer; high antijamming capability, strong signal transmission, high efficiency.
4. The product is environment-friendly, efficient and energy-saving; without consumable items.
Advantages
1. Adopting integrated structure, without optical pullution, low power coupling loss.
2. Low cost.
3. High processing speed (3-4 times higher than that of traditional lser marking machines).
4. Long service life of laser.
5. Without consumable items, maintenance-free.
6. Convenient operation, powerful functions, it supports more document formats.
7. Excellent beam quality and stable performance.
8. High marking accuracy.
Application:
Electronic components: relay, electronic IC, ceramic resistor, phone translucent keys and etc.
Computer peripheral products: keyboard, translucent panels, U disk, and other surface characters
Hardware: watches accessories, gifts and jewelry, auto parts
Technical parameters:
| Model |
WH-FM30 |
|
Laser |
Original IPG laser generator |
|
Marking Range |
100x100 150x150 200x200(mm)(optional) |
|
Cooling Mode |
Air-cooled |
|
Laser Repetition Rate |
20KHZ~200KHZ |
|
Laser Power |
30W |
|
Optical maser wavelength |
1064nm |
|
Minimum Line Width |
0.006mm |
|
Engraving Speed |
12000mm/S |
|
Repeat Accuracy |
0.00002mm |
|
Engraving Depth |
≤0.5mm |
|
Minimum Characters |
0.09mm |
|
Service Life |
Average 100,000 to 500,000 light whisper |
|
Dimensions (L x W x H) |
Power: 220V ± 5% |
|
Ambient temperature: -10 ℃ ~ 36 ℃ |
|
|
Marking machine: 850mmx700mmx1800mm |

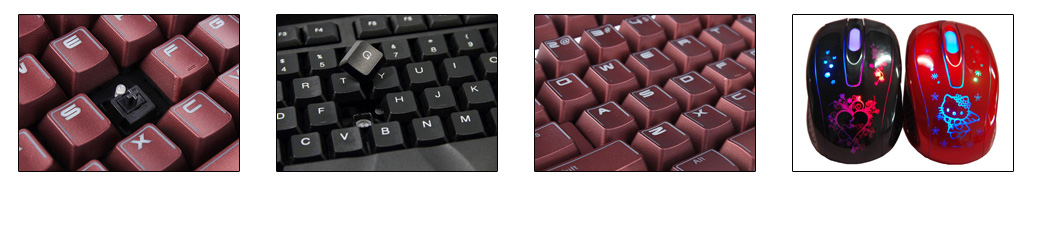

Samples:
.jpg)
